profile arches Segmental Arch Formers
Product guide

Technical information

Everything you need to select and specify the right Profile Arch for your project.

Designed for segmental arches

  • The Profile Arch is used for the construction of segmental arches in brickwork.
  • The unit is used over openings in external cavity walls, both traditional and timber frame, providing permanent centering for the brick arch construction.
  • The unit must always be used with a suitable steel lintel to provide adequate support.

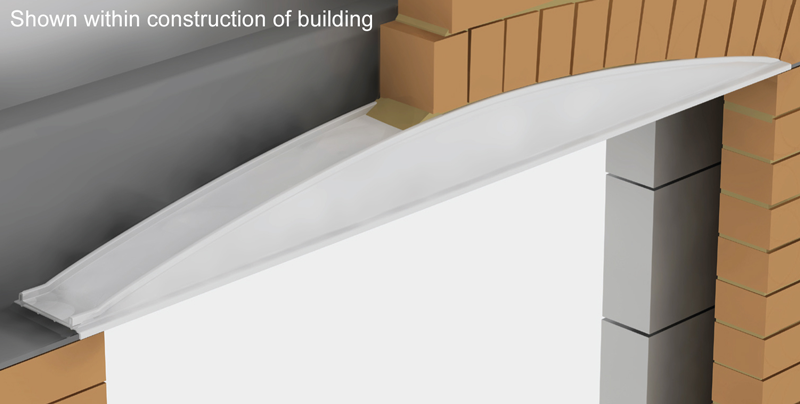

Profile Arch shown within building construction
Shown within building construction
Product range

Find your ideal size.

The Profile Arch is available for openings between 400 and 3200mm. Sizes up to 4200mm overall are available to special order.

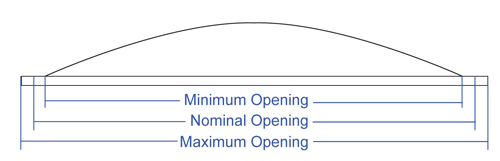

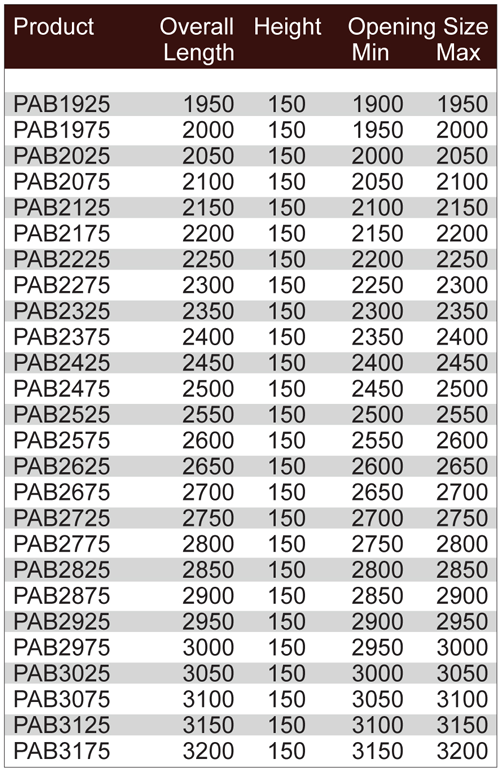

Diagram showing minimum, nominal and maximum arch opening measurements Profile Arch size table for larger openings

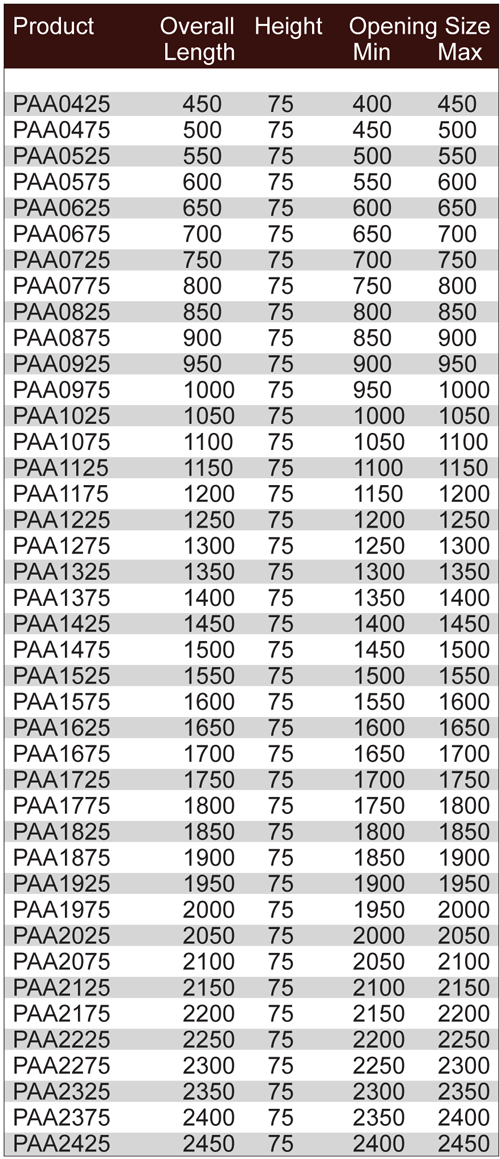

Profile Arch size table for openings from 400mm

Patent No. GB 2447534
